HMPP prefabricated pumping stations

Factory-built HMPP pumping stations supplied as a prefabricated unit for drainage lifting.

Request a quote for this productAll products
Hongsheng Plastic (Hangzhou) Co., Ltd. hmpp prefabricated pump stations product view

Overview

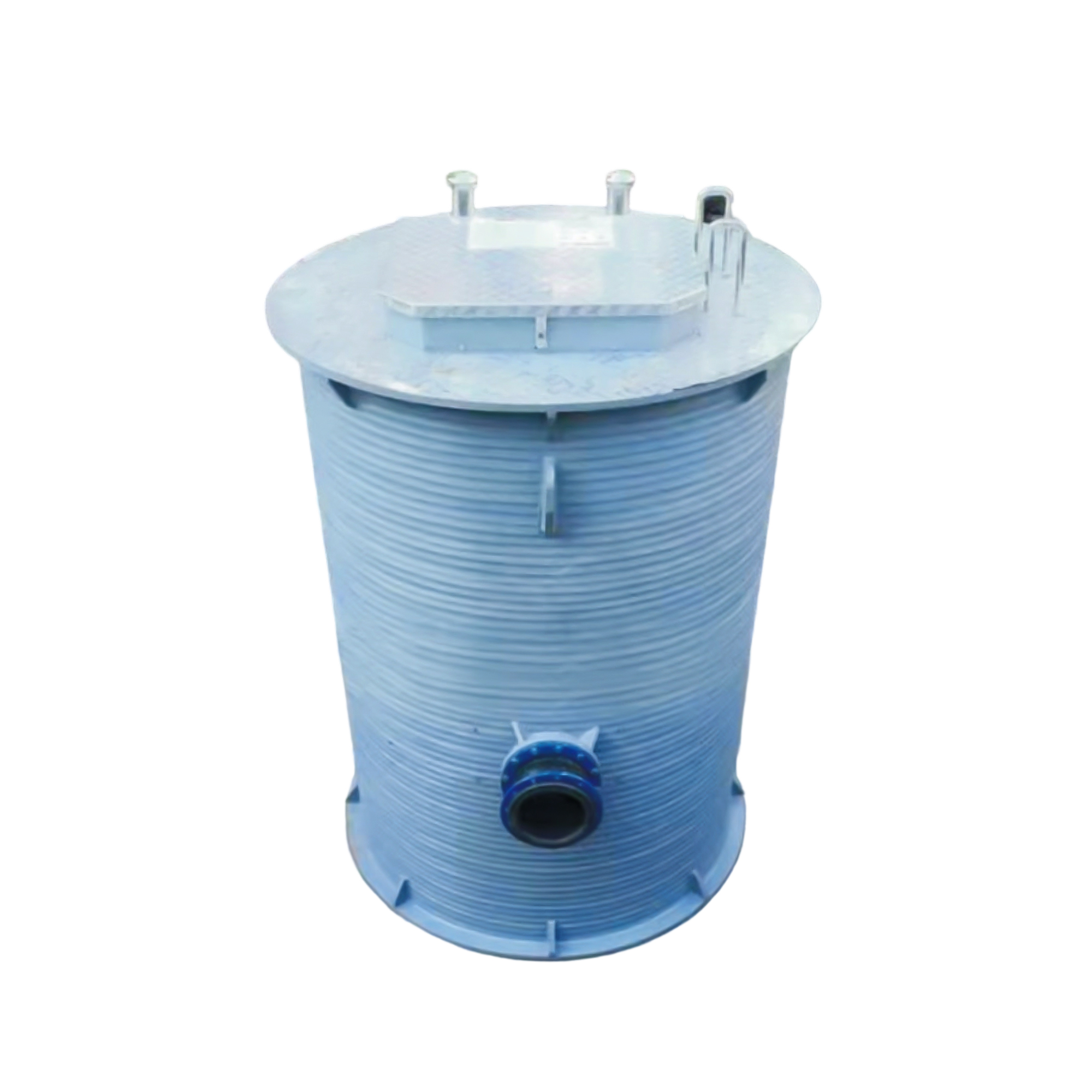

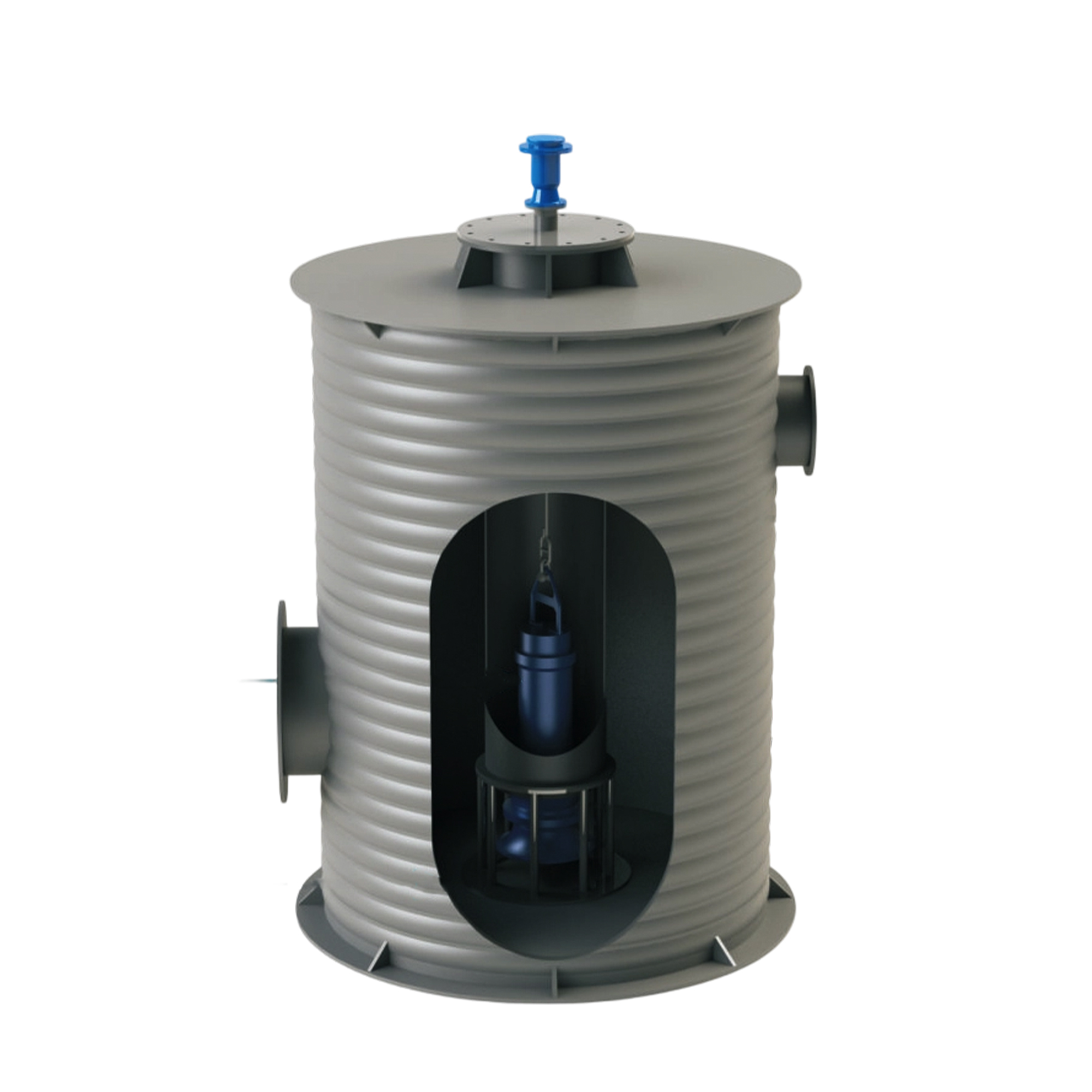

Prefabricated pumping stations bring the HMPP shaft, pressure pipework, inspection platform, ladder, grille, pump lifting system, lighting and controls together as one factory-assembled unit.

Applications include wastewater and rainwater lifting, flood drainage, river water transfer, agricultural irrigation and water pressure boosting. Pump flow, number of pumps, head, power and grille type are configured for each project; send your flow, head and connection requirements with the RFQ.

Specifications

Material
HMPP polypropylene
Shell type
Type A
Connections
Defined per project in the RFQ
Diameter range
DN600–DN4000
Main assemblies
HMPP shaft, pressure pipework, platform, ladder, grille, pumps, lighting and controls
Configurable items
Pump flow, number of pumps, head, power and grille type
Request a quote

Applications

Where this product is used

Project references

Examples with specified sizes and joints

These dimensions describe selected completed projects; a new order is specified separately.

  • Prefabricated pumping station

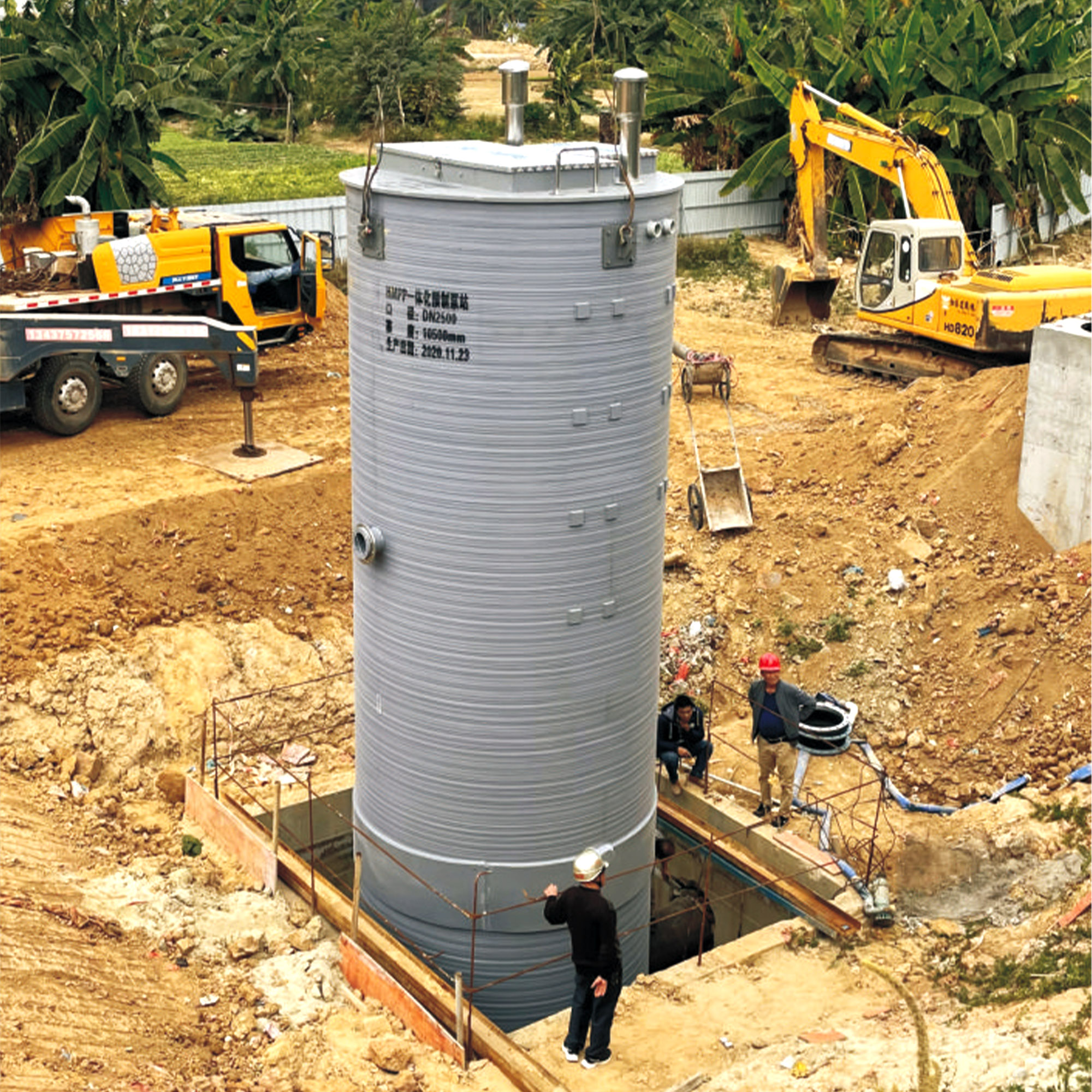

    Guangdong pumping station project

    • DN2500 × 11000 mm, Type A
    • 70 mm wall; PLC controls, three rainwater lifting pumps and a grinder grille
See all project examples

Used together

Related products

Request a quote for this product

Add your sizes, quantity and destination. The request opens with HMPP prefabricated pumping stations already filled in.

Request a quote
